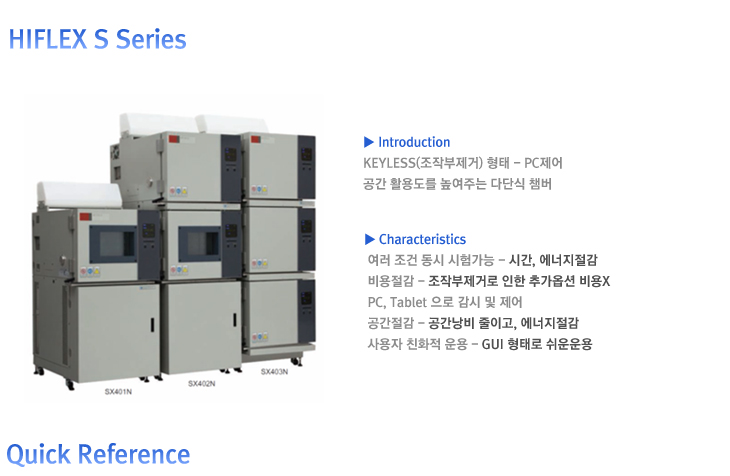

홈 > 환경시험장비 > 향온항습기 HIFLEX S Series
Internal dimesions W500 x H350 x D350mm W600 x H600 x D500mm
Temperature/humidity chamber
'-40℃~+100℃(+150℃)
20%RH ~ 98%RH 		1 chamber SX401N with rack - - -
2 chambers SX402N with rack 2 chambers SX412N without rack
3 chambers SX403N without rack - - -
Low temperature chamber
'-40℃~+100℃ 1 chamber SL401N with rack - - -
2 chambers SL402N with rack 2 chambers SL412N without rack
3 chambers SL403N without rack - - -
Model SX401N/SL401N SX402N/SL402N SX403N/SL403N SX412N/SL412N
Temp. range -40℃~+100℃(-40℃~+150℃)
Humid. Range 20~98%RH
Temp. ramp-up rate -40℃~+100℃(-40℃~+150℃)
within 35 min
Temp. ramp-down rate +20℃~-40℃
within 60 min
Temp.rate of change (ramp-up) -26℃~+86℃(-21℃~+131℃)
4.0℃/min
Temp.rate of change (ramp-down) +86℃~-26℃(+131℃~-21℃)
1.5℃/min
Variation ±0.3℃/±2.5%RH
Gradient Temp./humid. : 2.0℃/5.0%RH
Variation in space Temp./humid. : 1.5℃/5.0%RH
Internal Dimension (WxHxDmm) 500x350x350 (500x350x350)x2 (500x350x350)x3 (600x600x500)x2
External Dimension (WxHxDmm) 660x1535(SL:1300)x1035 660x2125(SL:1890)x1035 660x2155(SL:1920)x1370 760x2020(SL:1785)x1930
Power Supply AC200V 3Φ 50/60Hz voltage fluctuation ±10%
Refrigerator Rotary compressor
