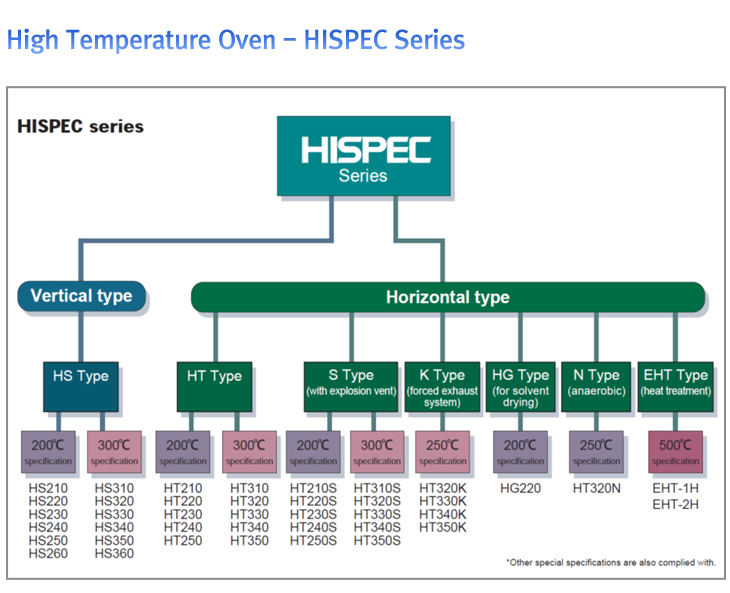

홈 > 환경시험장비 > 고온오븐 HISPEC Series

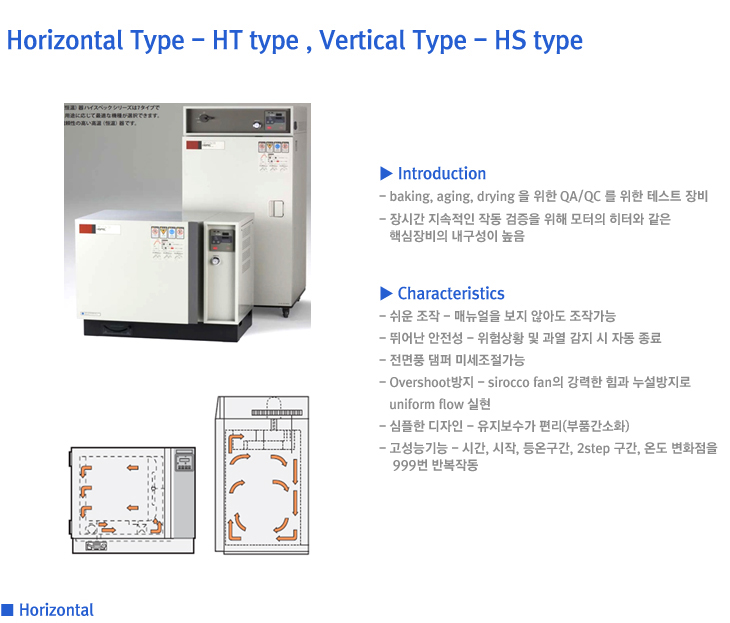

Internal dimension 450×450×450 600×600×600 800×800×600 800×1000×800 1000×1000×800
+20℃ ~ 200℃ HT210 HT220 HT230 HT240 HT250
+20℃ ~ 300℃ HT310 HT320 HT330 HT340 HT350
Teperature uniformity ±2.0℃
Setting/display resolution ±1.0℃
Setting/display accuracy 0.5% (F.S) +1℃/digit
Power supply AC200V 3Φ 50/60Hz voltage fluctuation ±10%
Internal dimension 600×900×600 600×1200×600 800×1200×600
+20℃ ~ 200℃ HS240 HS250 HS260
Teperature uniformity ±2.0℃
Setting/display resolution ±1.0℃
Setting/display accuracy 0.5% (F.S) +1℃/digit
Power supply AC200V 3Φ 50/60Hz voltage fluctuation ±10%

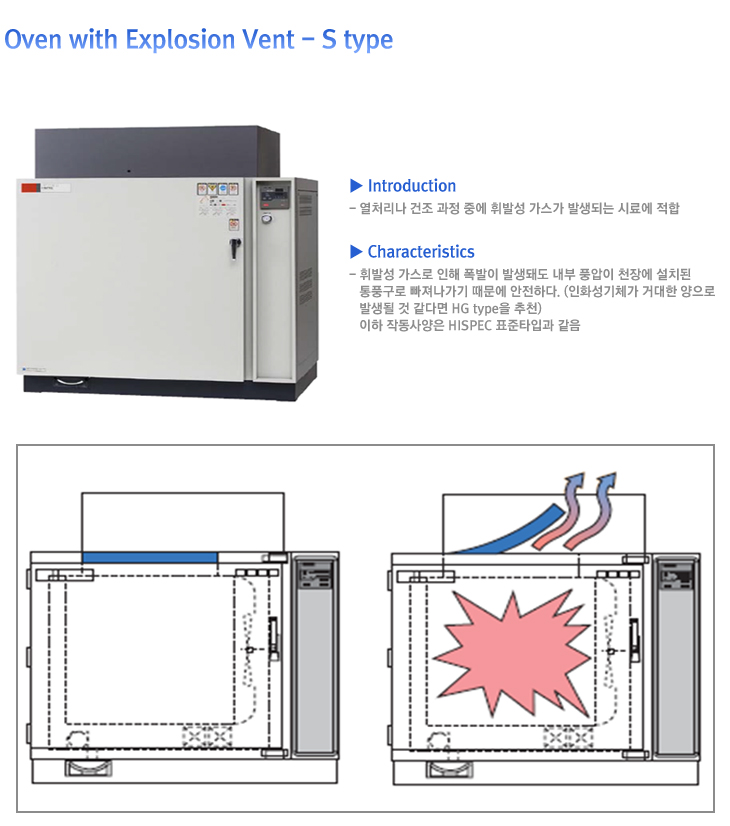

HT - S type With explosion vent
Type HT210S HT220S HT230S HT240S HT250S

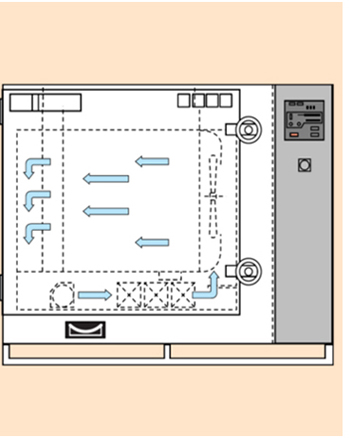

Circulation method Forced convection system
Temperature range (Ambient temp.+20℃)~+200℃
Teperature uniformity ±1.5℃ (at +200℃) ±3.0℃ (at +200℃)
Temperature
heat-up rate 		within 40min.
(room temp.~+200℃) 		within 50min.
(room temp.~+200℃)
Internal dimensions
(WxHxD) 		450x450x450 600x600x600 800x800x600 800x1000x800 1000x1000x800
External dimensions
(WxHxD) 		1040x1260x710 1190x1260x860 1460x1595x890 1460x1815x1090 1660x1895x1090
Power supply AC200V 1Φ 50/60Hz AC200V 3Φ 50/60Hz
HT - S type With explosion vent
Type HT310S HT320S HT330S HT340S HT350S
Circulation method Forced convection system
Temperature range (Ambient temp.+20℃)~+300℃
Teperature uniformity ±2.5℃ (at +300℃) ±4.0℃ (at +300℃)
Temperature
heat-up rate 		within 50min.
(room temp.~+300℃) 		within 60min.
(room temp.~+300℃)
Internal dimensions
(WxHxD) 		450x450x450 600x600x600 800x800x600 800x1000x800 1000x1000x800
External dimensions
(WxHxD) 		1040x1260x710 1190x1260x860 1460x1595x890 1460x1815x1090 1660x1895x1090
Power supply AC200V 1Φ 50/60Hz AC200V 3Φ 50/60Hz

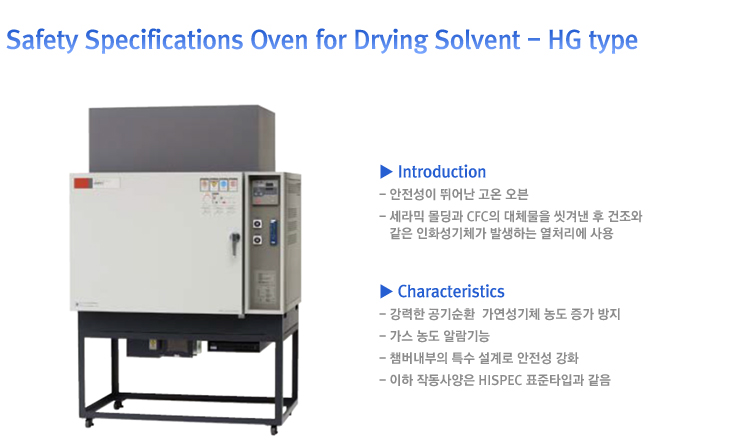

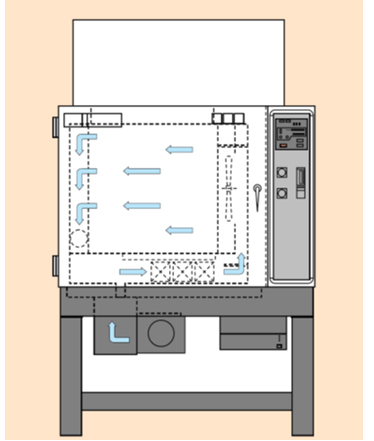

Product name Forced hot air exhaust high temperature chamber for solvent drying
Type HG220
Temperature range Ambient temp.+20℃)~+200℃
Temperature uniformity ±3.0℃ (at +200℃)
Temperature heat-up rate within 50min. (room temp.~+200℃)
Internal dimensions
(WxHxD)		 600x600x600
External dimensions
(WxHxD)		 1215x1920x1015
Power supply AC200V 3Φ 50/60Hz
Explosion vent Explosion pressure relief vent
Gas alarm Operation stops when the gas concentration eaches 30%
of the minimum allowable concentration.
Back-up power supply Air supply fan and gas alarm can be backed up for longer than 5 minutes.

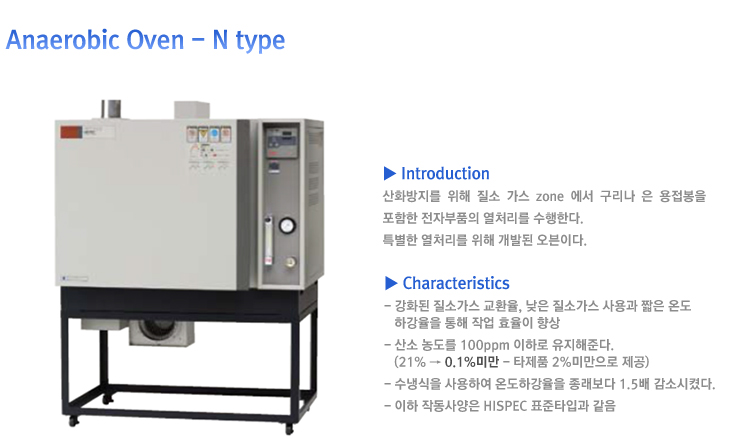

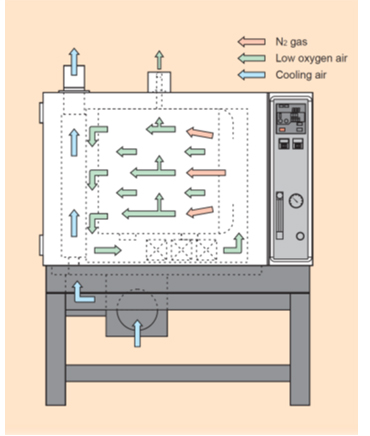

Product name Anaerobic oven
Type HT320N
Criculation method Forced convention system
Temperature range (Ambient temp.+40℃)~+250℃
Temperature uniformity (Ambient temp.+40℃)~+250℃
Temperature heat-up rate within 60min. (room temp.~+250℃)
Internal dimensions
(WxHxD) 		600x600x600
External dimensions
(WxHxD) 		1350x1645x905
Power supply AC200V 3Φ 50/60Hz
Remaining concentration
of oxygen 		less than 100ppm
N2 opening 3 / 8 B socket
N2 exhaust 3 / 4 B hose nipple
N2 pressure meter 6 kgf/cm² Attached pressure adjustable valve
N2 flow meter 0~50 liter/min

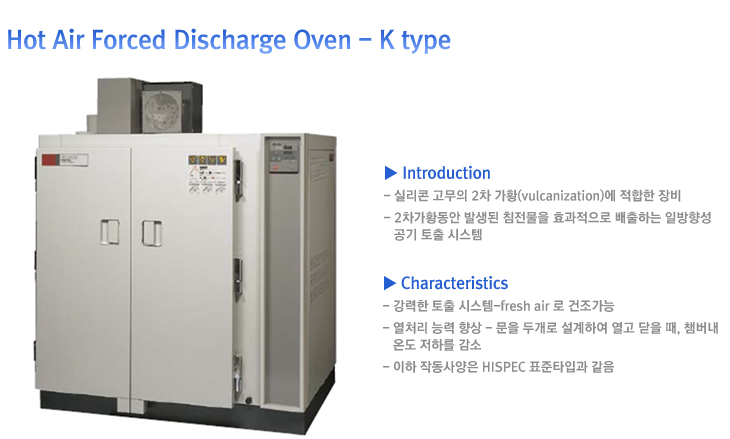

Product name Forced hot air exhaust
Type HT320K HT330K HT340K HT350K
Temperature range (Ambient temp.+20℃)~+250℃
Temperature uniformity ±5.0℃ (at +250℃)
Setting
/ display accuracy 		0.5% (F.S) +1℃/digit
Temperature heat-up rate within 60min. (room temp.~+250℃)
Internal dimensions
(WxHxD) 		600x600
x600		 800x800
x600		 800x1000
x800		 1000x1000
x800
External dimensions
(WxHxD) 		1190x1645
x825		 1460x1960
x880		 1460x1785
x1080		 1460x1785
x1080
Power supply AC200V 3Φ 50/60Hz
Air exhaust outlet Ceiling section Φ100 Ceiling section Φ120
Door Hinged single door Hinged double door

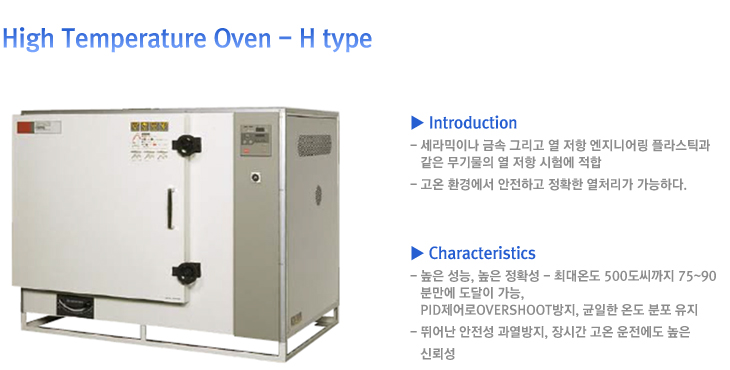

Product name High temperature chamber
Type EHT-1H EHT-2H
Temperature range (Ambient temp.+40℃)~+500℃
Temperature uniformity ±5.0℃ (at +500℃)
Setting
/ display accuracy 		0.5% (F.S) +1℃/digit
Temperature heat-up rate within 75min. (room temp.~+500℃) within 90min. (room temp.~+500℃)
Internal dimensions
(WxHxD) 		450x450x450 600x600x600
External dimensions
(WxHxD) 		1290x1160x1010 1440x1175x1160
Power supply AC200V 3Φ 50/60Hz
Damper Circulation / ventilation switch mechanism
Exhaust vent Φ 82 (With exhausst duct)
